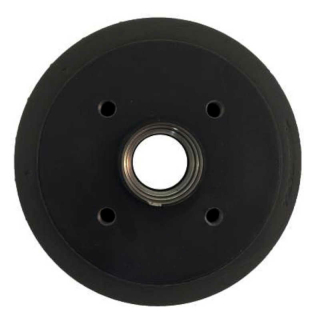

AL-KO Kober brake drum: 200 x 50, wheel connection: 100 x 4
holes for old wheel brakes of type SB203, 2035/1000 kg, 2050, 2051
Cast number: 238266.... - Wheel brake 2050, 2051, 2035/1000 kg
for tapered bearings outside LM 67048/010, and inside LM 11949/910
Attention: The older brake drums with the mold no. 208436 and 238261 are no longer available and had the old wheel brake 2035-850 kg with shoe set 200 x 35.
The replacement is the mold no.238266, but with a changed bearing seat (outside 47, inside 62 mm) for ball bearings 6204/6206 or cone bearing 30204 / 30206. Brake
drum with connection 100 x 4.
The wheel brakes SB200, SR201, SR202, SR203, 2035/850 kg and 2050 are affected.
The following spare parts are suitable for this:
Tapered bearing KLM 67048/010, inside
Tapered bearing KLM 11949/910, outside
Sealing ring 42/62 x 7 mm
Castle
nut M 18 x 1.5 700117 2.65
Grease cap Ø 48 mm
Brake shoe set 200 x 50 complete with springs
PDF
| Item information |
Value |
| Shipping weight: |
6,50 kg
|
