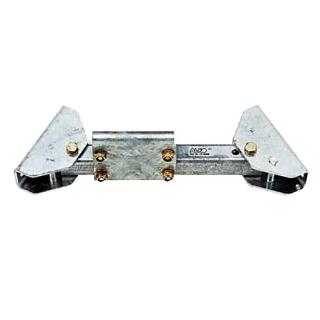

Jockey wheel traverse for traction connections V - 3,500 kg Length: 390/410 mm

Jockey wheel traverse for traction connections V - 3,500 kg Length: 390/410 mm

SKU: 415531-0001
Category: AL-KO Kober
Manufacturers:

Support wheel traverses, length: 390/410 mm, ALKO Item no.: 1212991

Type: Length: 390/410 mm$ 152.43

Length: 440/460 mm$ 156.22

Length: 515/535 mm$ 180.25

$ 152.43

excl. 0% VAT , plus

Delivery time: 1 - 8 Workdays Other countries

Description
Question about item

Jockey wheel traverses for traction connections V - 3,500 kg

AL-KO item number: 1 212 991

If the support load is exceeded, no twisting of the bars, as was sometimes the case with External mounting of the support wheel
The installation of the support wheel between the bars enables safe and easier maneuvering by hand
The movable mounting brackets allow the cross bar to be adjusted to the respective bar position
The delivery is pre-assembled, which means that assembly is quick and easy
Three standard lengths allow a wide variety of assembly positions

Area of application for V-chassis

Attachment:
The traverse can be attached to AL-KO tension connections (attachment position see sketch). For this purpose, 2 holes 12.5 or 13 mm each are required in the neutral area of the bars (TÜV approval, see operating instructions).
Attention The support wheel traverse must lie against the upper edge of the train connection. The support wheel can be installed either in front of or after the traverse in the direction of travel.

Surface treatment:
Hot-dip galvanized, screws galvanized and additionally yellow chromated

Scope of delivery:
Traverse with pre-assembled mounting brackets and pre-assembled counter flange for clamps Ø 48 mm and Ø 60 mm or AL-KO flange support wheel.
