Brake Shoe Set for KNOTT Wheel Brake Type 25-2025/1 with Rückmatic
Original KNOTT brake shoe set in neutral packaging
Also suitable for BPW S2504-5 R ASK, Nieper 25-2025, and Schlegl SKB 18
Drum diameter: 250 mm
Shoe width: 40 mm
Includes all tension and compression springs

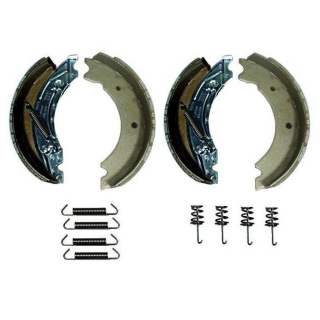

Complete set with all mounting springs for 2 brake drums or 1 axle consists of:
2 x primary brake shoe
2 x secondary brake shoe with Backmat
2 x 3-piece spring set: 1 x compression spring, 1 x short tension spring, 1 x long tension spring
402677001 402677.001
Use a new flange nut for each brake drum opening!
The thread of the flange nuts is oval on the inside, therefore self-locking. Once removed, the flange nuts no longer have the strength on the thread and must be replaced for safety reasons with a new unused self-locking flange nut.
| Item information |
Value |
| Shipping weight: |
2,50 kg
|
