Winterhoff safety coupling WS 3000 Ø 35, 40, 45, 46, 50 mm

Winterhoff safety coupling WS 3000 Ø 35, 40, 45, 46, 50 mm

SKU: 1450
Category: Safety coupling with track stabilization
Manufacturers:

WS 3000 drawbar Ø 35, 40, 45, 46, 50 mm

$ 498.36

excl. 0% VAT , plus

Delivery time: 1 - 8 Workdays Other countries

Description
Question about item

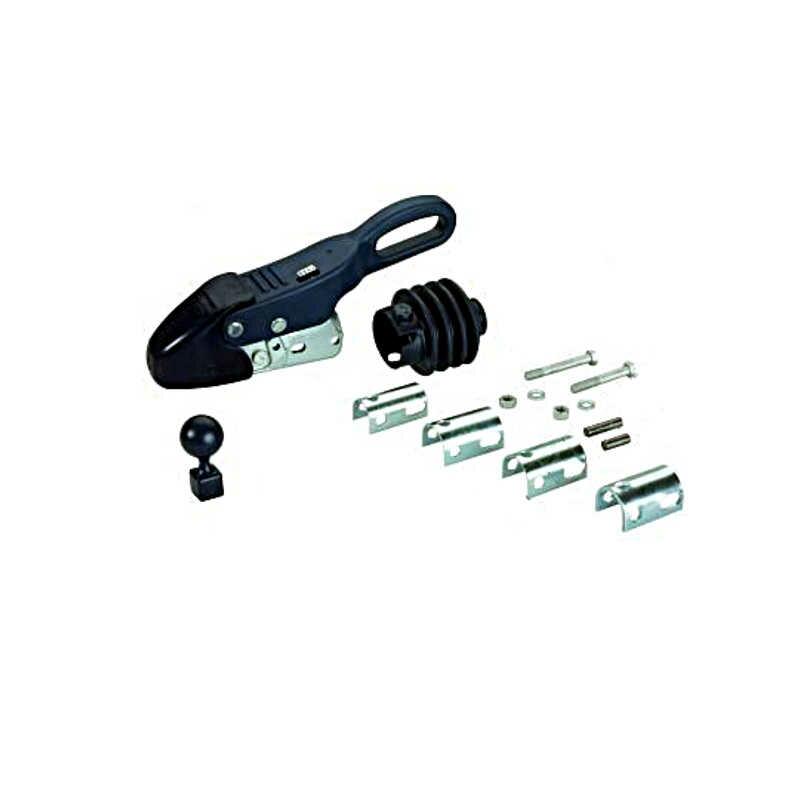

Winterhoff WS 3000 safety coupling for drawbar Ø 35, 40, 45, 46, 50 mm

It was the only one in the test to achieve the critical speed of 130 km / h in France without the trailer rolling best damping and the highest damping torque for rolling and pitching movements on the test bench.
It dampens lurching and nodding movements up to 330 Nm, has a very easy single-lever operation and is approved for trailer loads of up to 3000 kg. (For drawbar Ø 35 - 50 mm).

A: open, suspended coupling
B: secured coupling with deactivated stabilization
C: secured clutch with active stabilization

- Reduces rolling and nodding
- One-lever system for all functions
- Stabilizing, destabilizing
- Coupling, uncoupling
- Securing, unlocking

D: Large clearance to the rear of the vehicle. Problem-free coupling even for vehicles with a rear spare wheel and a small distance between the bumper and ball.

E: Maxi-Soft-Buffer protects legs and bumpers

H: Extremely slim design for Unrestricted ball neck clearance

- Low dead weight with 3000 kg trailer load
- Support load up to 150 kg
- EC approval No. 00-0065 e1
- No entry required
- Can be retrofitted for all trailers with a drawbar connection of Ø 35-50 mm, cross or parallel screw connection

WS 3000, the safety coupling with track stabilization and single lever system.
