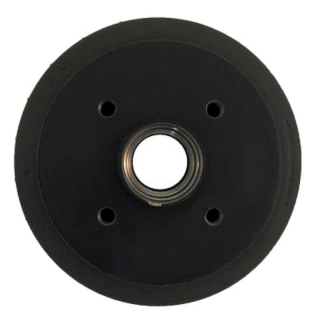

AL-KO Kober brake drum: 200 x 50, wheel connection: 100 x 4 holes for wheel brakes 2051
with axle bearing 72 x 39 x 37 mm
Brake axle Euro Plus 2051 ETI- No.: 811135
Large compact
bearing inner diameter Ø 39 mm, outer diameter Ø 72 mm
Cast number on the brake drum is: 581063 Brake
drum inner diameter Ø: 200 mm, width of the Brake shoes: 50 mm, wheel connection: 4 x 100 thread: M12 x 1.5
Dimensions of the wheel bearing: outside 72 mm / inside 39 mm / depth 37 mm
The following spare parts fit
Art.-No.: 1224803 Wheel bearing, the wheel bearing set consists of:
1 x compact wheel bearing Ø 72/39/37 mm
1 x retaining ring
1 x flange nut, self-locking, 280 Nm
Art.-No.: 581 197 Grease cap Ø 55 mm
Art.-No.: 1213889 Brake shoe set complete with springs
PDF
| Item information |
Value |
| Shipping weight: |
7,20 kg
|
